Product overview
It is suitable for circuits with AC frequency 50Hz and rated operating voltage below 500V. Under special requirements, the protection level can reach IP55. There are knock-out holes on the top and bottom of the box. A flexible perforated plate can be reserved for multi-tube incoming lines. The maximum rated current can reach 400A. It is especially suitable for industrial and mining, hotels, and civilian applications. Metering control box for users such as residential buildings. This product complies with the requirements of GB7251.12-2013 "Low-voltage complete switchgear and control equipment", IEC60439-2:2011 "Low-voltage complete switchgear and control equipment" and other standards.

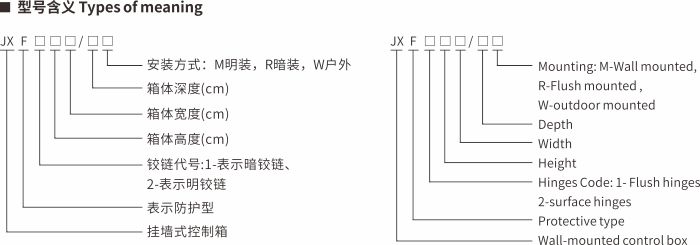

Model and features
Normal service conditions
● Temperature: -25°C~+40°C (with special technology, up to -45°C);
● Humidity: ≤50% (+40°C)
● Altitude: The altitude of the installation site does not vary More than 2500m;
● Rated working voltage: 230V 400V
● Rated working voltage: 400A
● Rated short circuit breaking capacity: 80kA
● Shell protection level: IP55
Technical parameter
型号
Type
规格Specifications
高H×宽W×深D(mm)
型号
Type
规格Specifications
高H×宽W×深D(mm)
JXF1-2525/14
250×250×140
JXF1-6040/23
600×400×230
JXF1-3025/14
300×350×140
JXF1-6050/14
600×500×140
JXF1-3025/18
300×350×180
JXF1-6050/20
600×500×200
JXF1-3030/14
300×300×140
JXF1-6050/23
600×500×230
JXF1-3030/20
300×300×200
JXF1-7050/16
700×500×160
JXF1-4030/14
400×300×140
JXF1-7050/20
700×500×200
JXF1-4030/20
400×300×200
JXF1-7050/25
700×500×250
JXF1-5040/14
500×400×140
JXF1-8060/20
800×600×200
JXF1-5040/20
500×400×200
JXF1-8060/25
800×600×250
JXF1-5040/23
500×400×230
JXF1-10080/20
1000×800×200
JXF1-6040/14
600×400×140
JXF1-10080/25
1000×800×250
JXF1-6040/20
600×400×200
JXF1-10080/30
1000×800×300
Notes: customizationforspecialspecification andrequirementis available
Overall dimension
No information yet
