DFW-12 Cable branch box

DFW-12 Cable branch box

  • ●Fully insulated and fully sealed structure ensures personal safety; ●Outdoor type, dustproof, moisture-proof, flood-resistant, corrosion-resistant, and strong environment...
I want to make an inquiry.
  • Product overview
  • Model and features
  • Technical parameter
  • Overall dimension

Product overview

●Fully insulated and fully sealed structure ensures personal safety;

●Outdoor type, dustproof, moisture-proof, flood-resistant, corrosion-resistant, and strong environmental adaptability;

●Flexible combination, from two to six incoming and outgoing lines, meeting a variety of wiring requirements;

●Small size, compact structure, beautiful appearance, simple installation and maintenance-free;

●Chargeable display;
●Can be equipped with short circuit indicator;
●Can bring lightning arrester.
●This product complies with GB/T11022 "Common technical requirements for high-voltage switchgear and control equipment standards", GB11033.1~3 "Basic technical requirements for power cable accessories with rated voltage below 35kV", JB/T1084 0-2008 "3.6kV~40.5kV high-voltage AC metal-enclosed cable tap-changer equipment" and GB39062006 "3.6kV~40.5kV AC metal-enclosed switchgear and control equipment" standards.

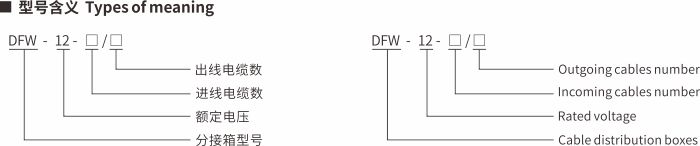

Model and features


Normal service conditionsNormal service conditions

● Ambient temperature: upper limit +40°C, lower limit -15°C (with special technology, up to -45°C);
● Altitude does not exceed 2500m (with special technology, up to 4000m);

● Relative humidity: the daily average value is not greater than 95%, and the monthly average value is not greater than 90%;

● Installation site: A place without fire, explosion hazard, chemically corrosive gas and well-ventilated, and the ground inclination angle is not more than 3°;

Note: When the above normal usage conditions are exceeded, the user can negotiate with the manufacturer to determine.

Technical parameter


Main technical data of thecable distribution boxes

名称Description 单位Unit 参数Specifications
额定电压Rated voltage KV 12
额定电流Rated current A 630
额定频率Rated frequency Hz 50
额定短时耐受电流Rated short-time withstand current KA/s 20/3
额定峰值耐受电流Rated peak withstand current KA 50
lmin工频耐受电压
Rated powerfrequencywithstand voltage(lmin) 		kV 45
雷电冲击电压（峰值）
Rated lighting impulsewithstand voltage 		kV 105
联接点电阻Contact Resistance uΩ 40
导体工作温度Conductor temperature ℃ ≤95
局部放电Partial discharge ≤10pc/13kV
潮湿试验Hum吐ty test 11KV/100h通过
适用电缆类型Cable type XLPE
适用电缆截面Wire range mm2 25~400
适用环境温度Ambient airtemperature ℃ -40~50
适用海拔离度Altitude m ≤3000
