Product overview

KYN28A-12 (GZS1-12) indoor AC metal-armored center-mounted switchgear. It is suitable for three-phase AC power systems with rated voltage 12kV and rated frequency 50Hz. It is used to receive and distribute electric energy and control, protect and monitor circuits.

This product complies with GB3906 "3~35kV AC metal-enclosed switchgear", GB/T11022 "Shared technical requirements for high-voltage switchgear and control equipment standards", IEC60298, IEC62271-200 "AC metal-enclosed switchgear with rated voltage above 1KV and below 52KV" and control equipment": DL/T404 "Technical Conditions for Ordering Indoor AC High Voltage Switchgear" standard requirements

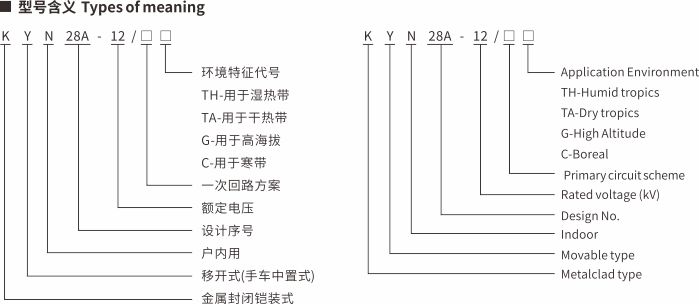

Model and features

Normal service conditions
● Ambient temperature: maximum temperature +40°C, minimum temperature -15°C (under special technology, up to -45°C);
● Ambient humidity: daily average ≤ 95%, monthly average ≤ 90% ;The altitude does not exceed 2500m (with special technology, it can reach 4000m);
● Seismic resistance; the earthquake intensity does not exceed 8 degrees;
● The surrounding air should not contain corrosive or flammable gases, water vapor and other obvious pollution: there should be no serious pollution and frequent violent vibrations, and the severity design under severe conditions should meet Class 1 requirements;
● Note: When the above normal use conditions are exceeded, the user This can be determined through negotiation with the manufacturer.
Structuralfeatures

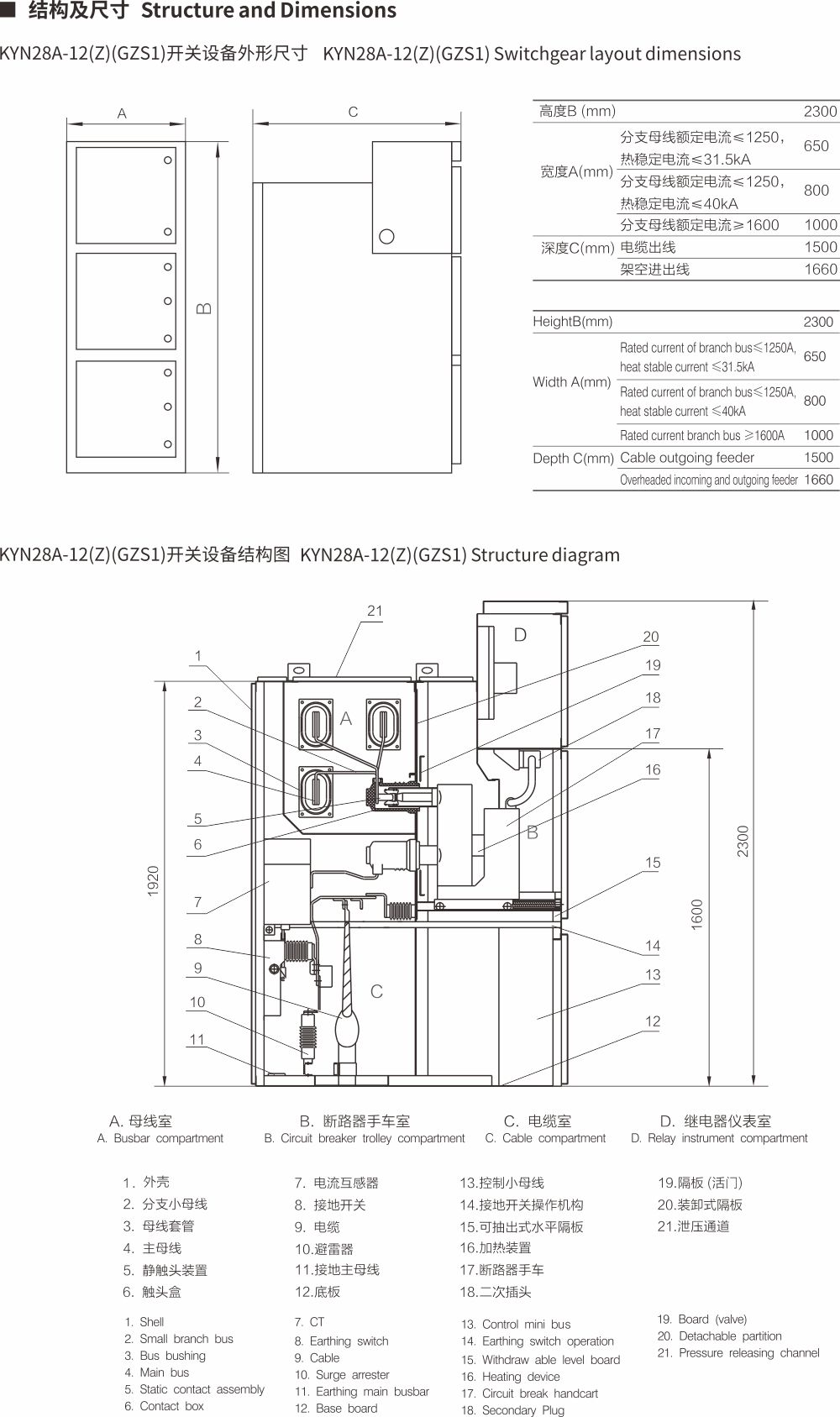

The switchgear is designed according to the armored metal enclosed switchgear in GB3906-2012, IEC62271-200:2012. The whole thing is composed of two parts: the cabinet and the central pull-out part (i.e. handcart) (see Figure 1). The cabinet is divided into four separate compartments. The protection level of the shell is IP4X. When the door of each small compartment and the circuit breaker room is opened, the level is IP2X. It has overhead incoming and outgoing lines, cable incoming and outgoing lines and other functional solutions. After arrangement and combination, it forms a complete power distribution system device. This switchgear can be installed, debugged and maintained from the front, so it can be back-to-back, double arranged and installed against the wall, which improves the safety and flexibility of the switchgear and reduces the floor space.

Technical parameter

Main technicaldata oftheswitchgear

Main technicaldataoftheVD4,VS-12 vacuum circuit breaker

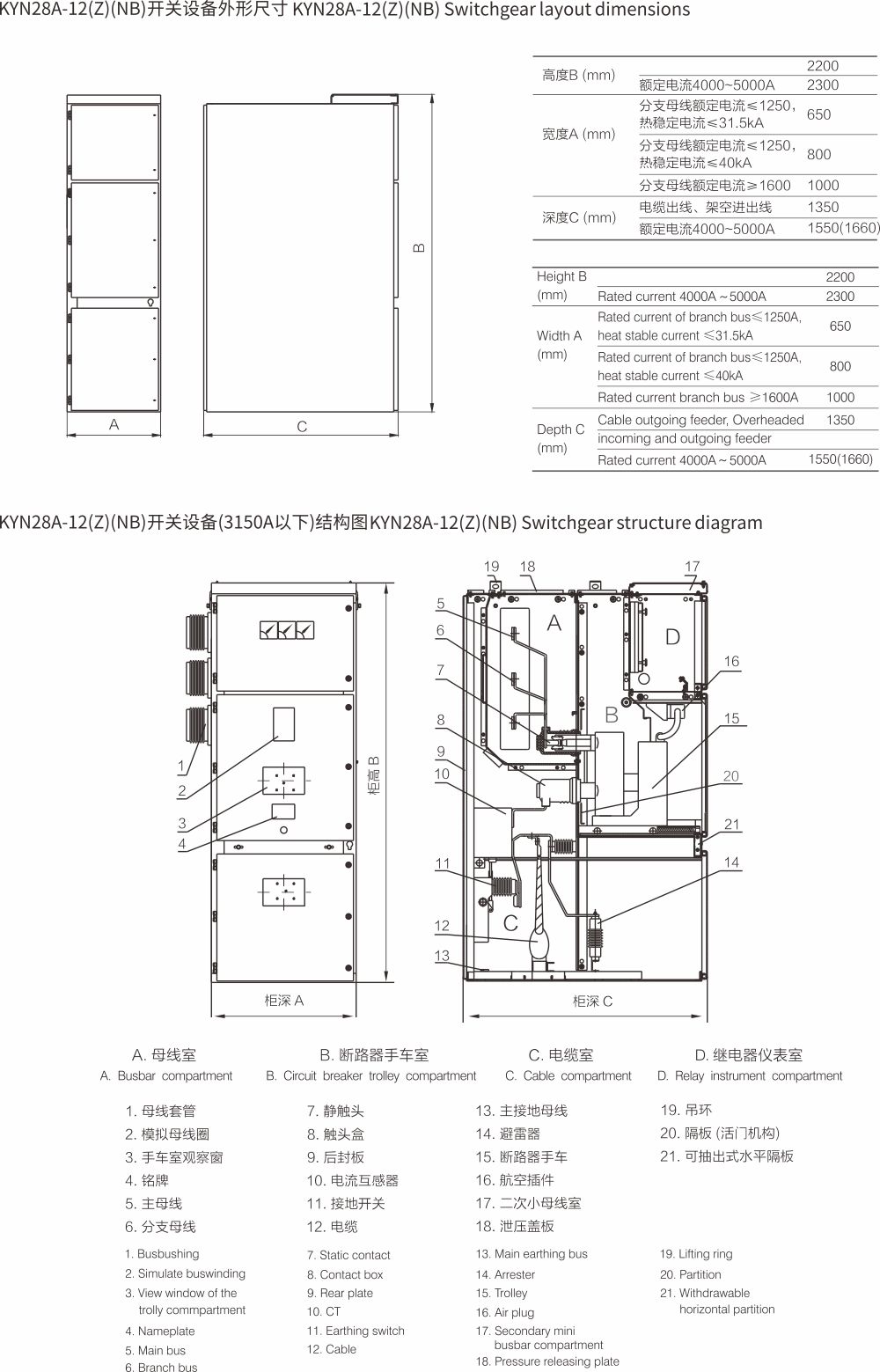

Overall dimension
